Forming Machine Fixture Pressure Monitoring

Battery manufacturers, in order to improve the quality of new energy battery formation, urgently need to accurately measure the flatness of the formation machine laminates during the lamination process.

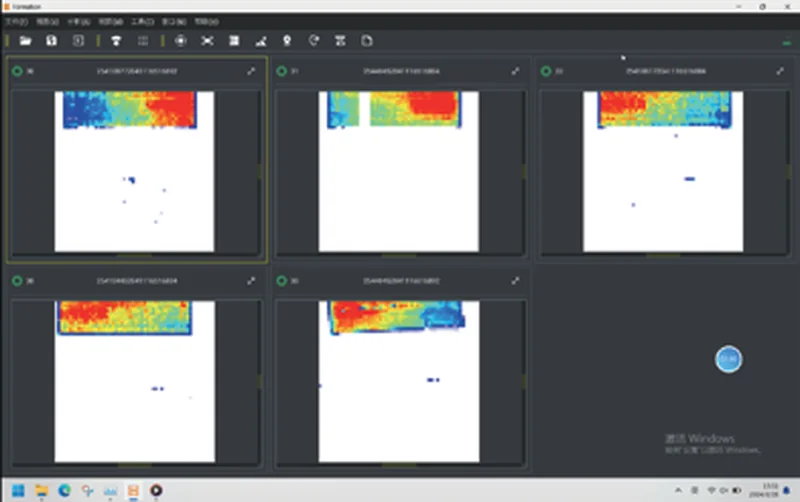

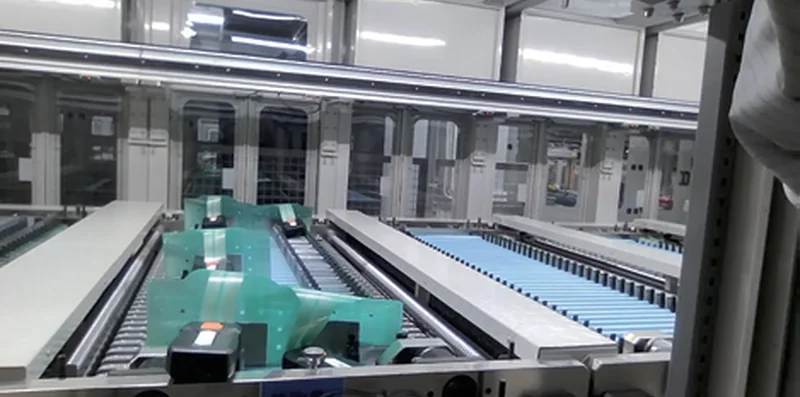

Thin film sensors are placed in the laminate sandwich of the forming ma- chine and pre-prepared analog cells are placed between the sensors and the laminate. The subtle dynamics of pressure change and flatness change are captured in realtime by the pressure distribution testing system. As the set pressure is adjusted, the pressure distribution shows different states.

Compared with pressure-sensitive paper, DPM64 solves the problems of high cost and expense and inconvenient measurement process. The accuracy and real-time measurement data are highly recognized by users, promoting R&D progress and production efficiency.
