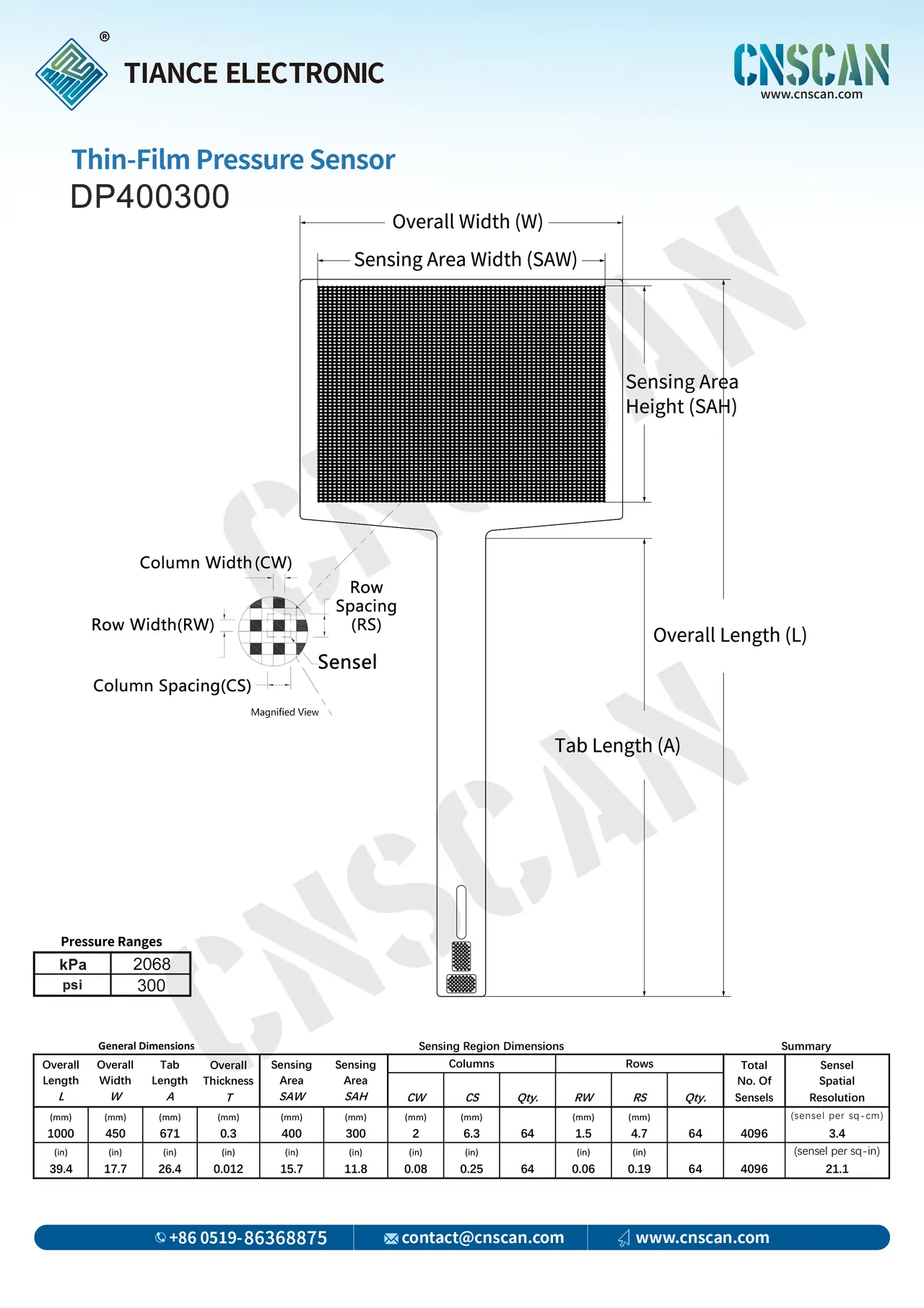

SPECIFICATION
| General Dimensions | Sensing Region Dimensions | Summary | ||||||||||||
| Overall Length
L |
Overall
Width W |
Tab
Length A |
Overall
Thickness T |
Sensing Area
SAW |
Sensing Area
SAH |
Columns | Rows | Total
No. Of Sensels |
Sensel
Spatial Resolution |
|||||
|
CW |
CS |
Qty. |
RW |
RS |
Qty. |
|||||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (sensel per sq-cm) | ||||
| 1000 | 450 | 671 | 0.3 | 400 | 300 | 2 | 6.3 | 64 | 1.5 | 4.7 | 64 | 4096 | 3.4 | |
| (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (sensel per sq-in) | ||||
| 39.4 | 17.7 | 26.4 | 0.012 | 15.7 | 11.8 | 0.08 | 0.25 | 64 | 0.06 | 0.19 | 64 | 4096 | 21.1 | |
