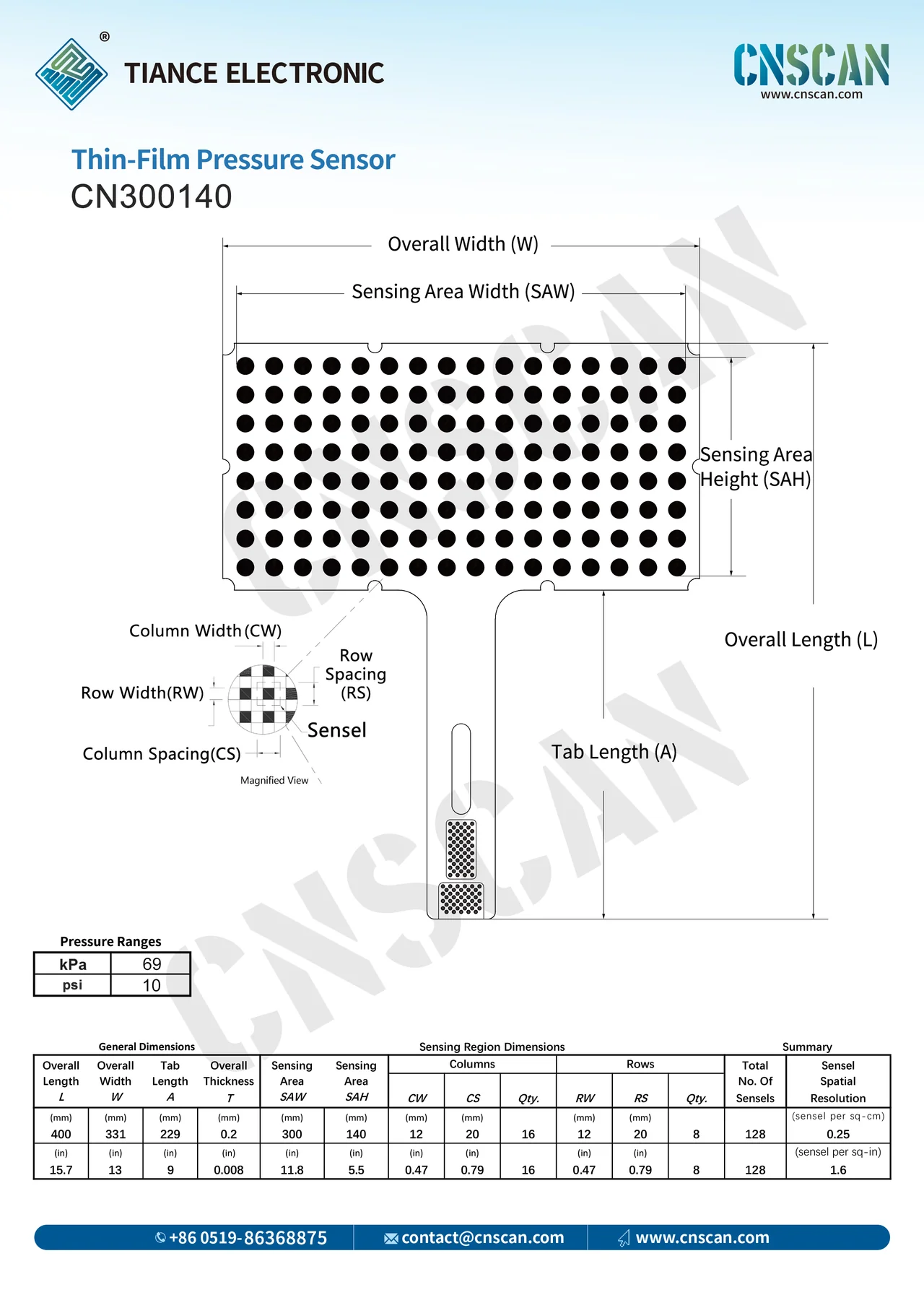

SPECIFICATION
| General Dimensions | Sensing Region Dimensions | Summary | ||||||||||||
| Overall Length
L |
Overall
Width W |
Tab
Length A |
Overall
Thickness T |
Sensing Area
SAW |
Sensing Area
SAH |
Columns | Rows | Total
No. Of Sensels |
Sensel
Spatial Resolution |
|||||
|
CW |
CS |
Qty. |
RW |
RS |
Qty. |
|||||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (sensel per sq-cm) | ||||
| 400 | 331 | 229 | 0.2 | 300 | 140 | 12 | 20 | 16 | 12 | 20 | 8 | 128 | 0.25 | |
| (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (sensel per sq-in) | ||||
| 15.7 | 13.0 | 9.0 | 0.008 | 11.8 | 5.5 | 0.47 | 0.79 | 16 | 0.47 | 0.79 | 8 | 128 | 1.6 | |
