D2 Distributed Pressure Measurement System for General Purpose (DPM-G)
System Introduction

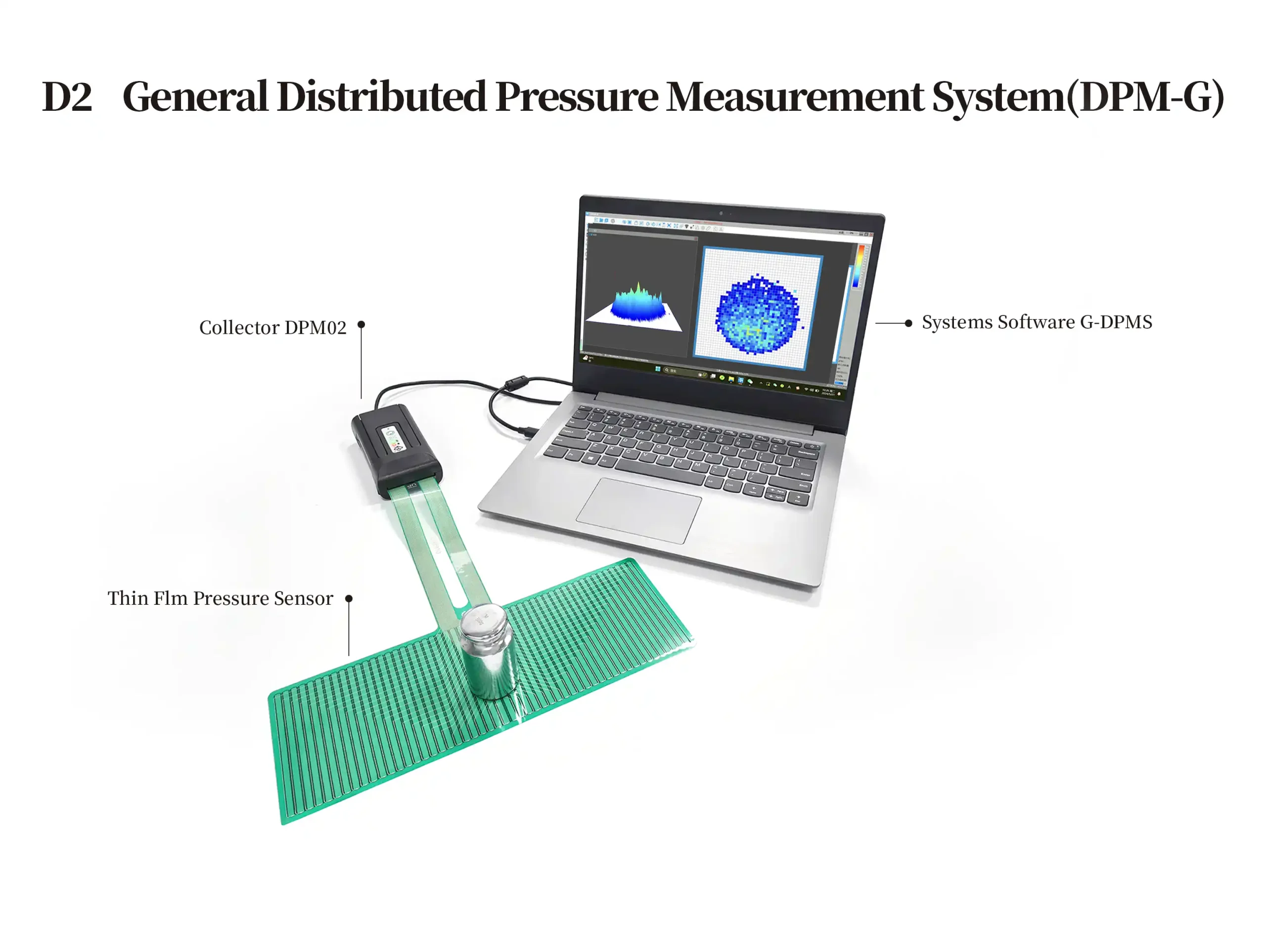

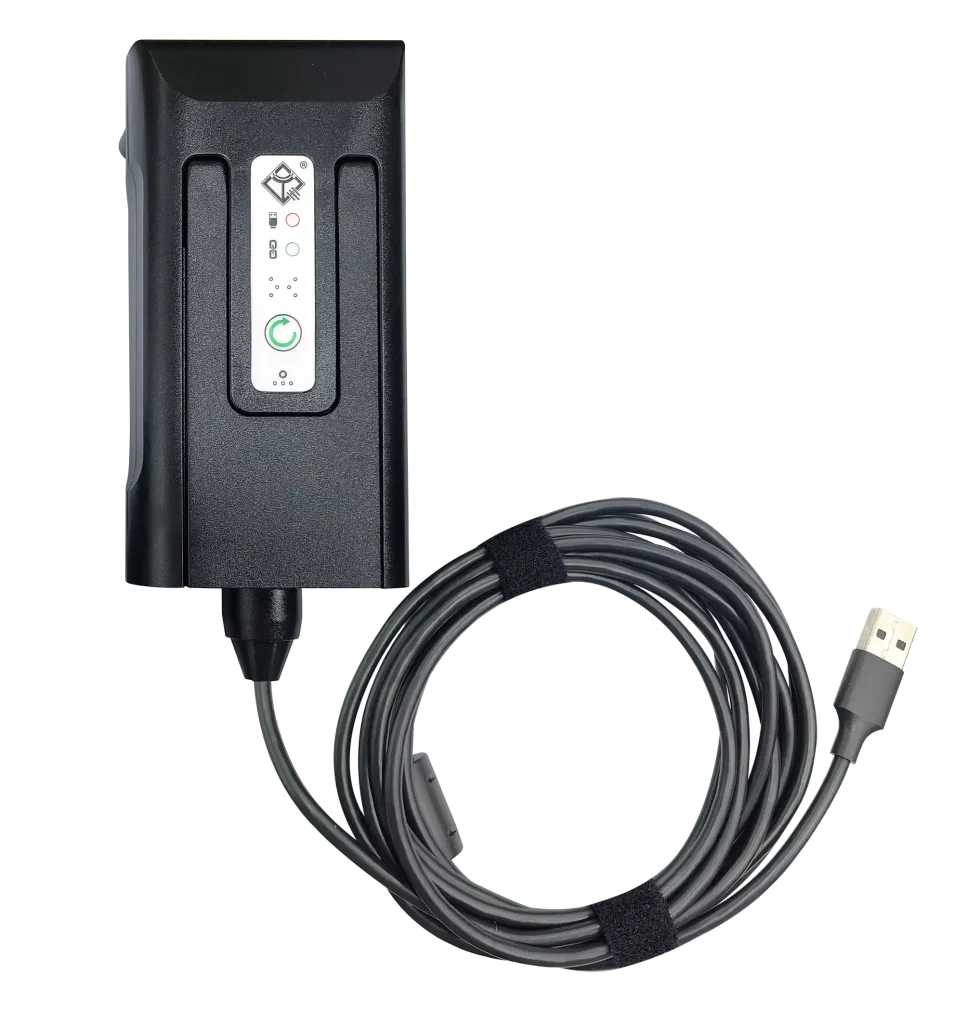

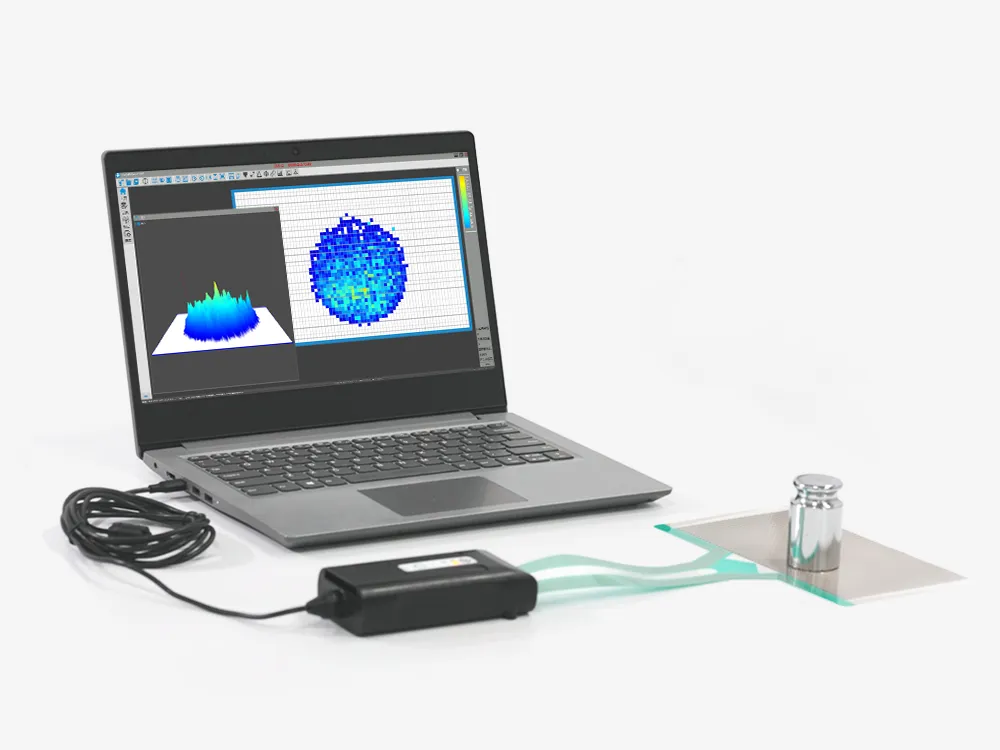

DPM-G (General Distributed Pressure Measurement System) system with DPM02 collector adopts the classic press-fit design, adapts to a variety of domestic and foreign thin-film pressure distribution transducers, 100Hz scanning frequency can match most of the application scenarios. The standard software of the system can display the contact pressure of the sensors in the form of two-dimensional or three-dimensional color pressure distribution images, and record the entire force process. The real-time detected pressure distribution data can be automatically related to statistical analysis, and can be exported for secondary data analysis or development.
System Parameters
The DPM-G system includes
| DPM02 Data Acquisition Unit | 1 set |
| CN Series Thin Film Sensors | 2 sheets |
| Supporting Software | 1 set |
| Thinkpad T490 | (Optional) 1 set |
DPM-G System Advantages
| Classic Design | Connects to quick flip-flop insertion and removal |
| Sensors | Adapts to more than 200 sensors |
| Wide range of applications | Covers more than 30 applications |
| Open system | Supports SDK customization |

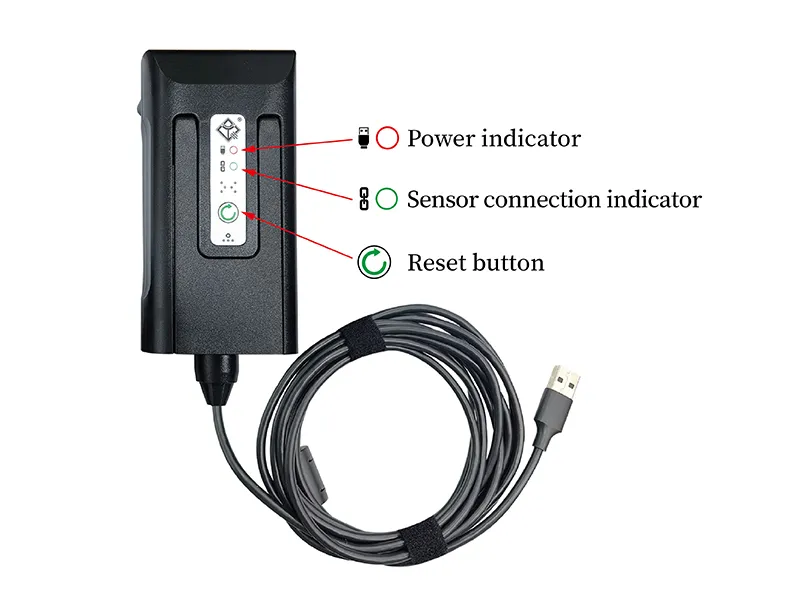

Collector DPM02 parameters
| Appearance size | Communication | Frequency | No. of sensing points |
|---|---|---|---|
| 132 66 35mm |
USB | 100Hz | 2288 |
0
Hz
Sampling frequency
0
Number of sensing units
0
bit
AD resolution
3-
0
Psi
Range of measurement
0
Maximum number of channels
800×
0
mm
Single channel detection area
64×
0
Number of rows and columns
0
meters
Wire transmission distance
