Tire-Rim Interface Pressure & Seal Measurement
Project Introduction
Tire grounding pressure distribution measurement system is a kind of pro- cess test instrument used in the field of mechanical engineering, especially in the automotive process experimental equipment occupies an important position. It can accurately measure the pressure distribution of tires when grounded, providing important data support for tire design, road surface research and vehicle dynamics analysis.

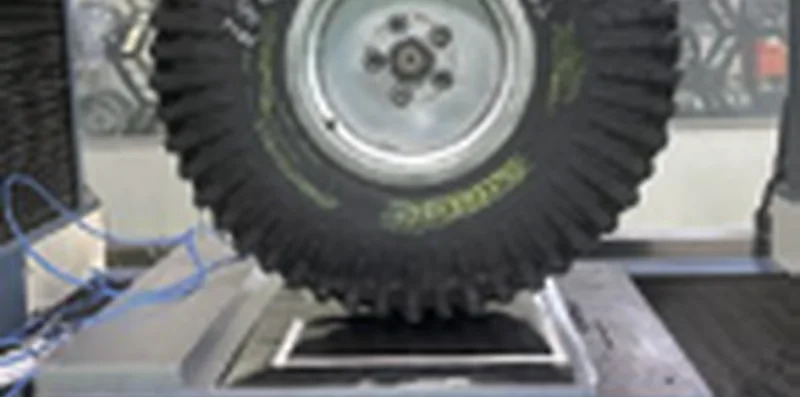

Static Testing
The press applies pressure to the tire, increasing the force from 100kg to 500kg for pressing and viewing the image of the tire impression.

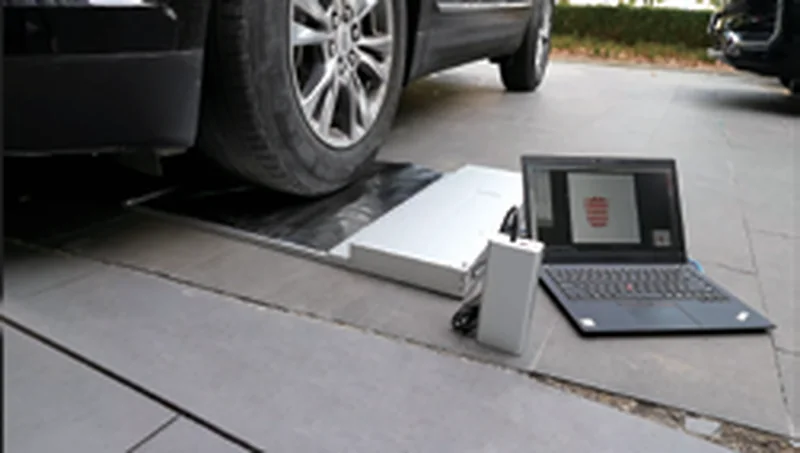

Dynamic Testing
In the outdoor environment, the automobile tire runs through the tooling at a constant speed, and the force value is displayed on the screen.

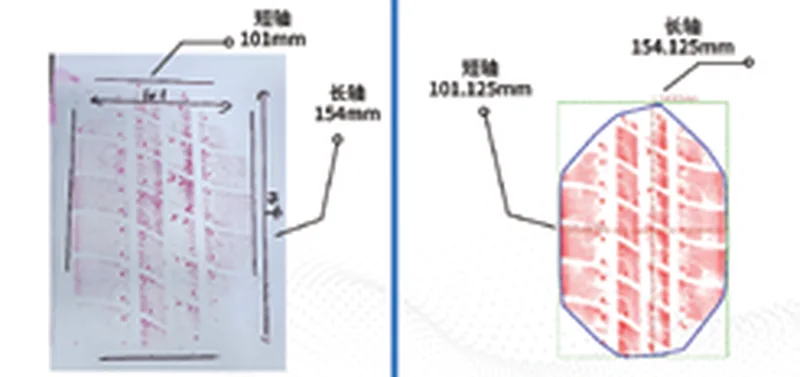

Measurement Result
The use of our equipment can accurately detect the tire ground pressure in realtime, easy to operate, and is of great significance in evaluating tire per- formance, optimizing tire design, and improving vehicle safety.
