Screen Bezel Fixture Flatness & Pressure Mapping
Project Introduction
Traditional pressure sensitive paper, pressure sensor detection means has been difficult to adapt to the transformation and upgrading needs of the digital manufacturing environ- ment. Changzhou Tianze has launched a dis- tributed measurement system for thin film pressure sensors for virtual reality devices, which is mainly used to measure and analyze the pressure distribution on the head of
head-mounted products such as VR devices and smart glasses, to improve and optimize the wearing experience of the products, to collect pressure data, and to model head data.

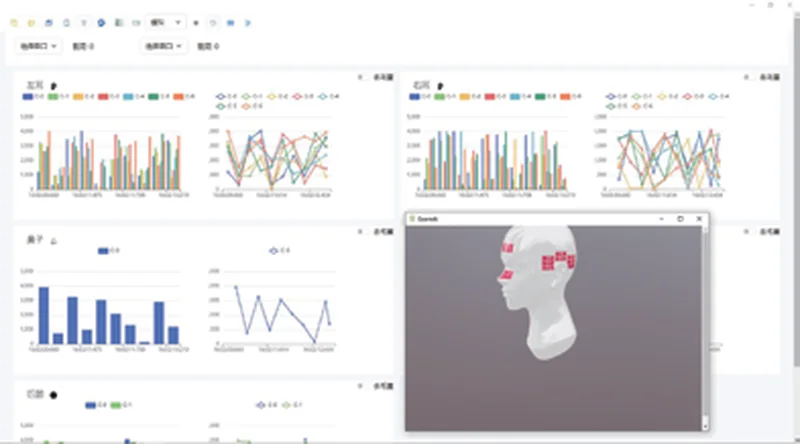

Measurement Process & Result
The flexible and ultra-thin film sensors are respectively covered in the main areas of the P95 3Dhead mold (forehead,forehead, nose, left ear, right ear), the sensor thickness is less than 0.1mm, 5 pieces of independent sensors work in parallel, the ultra-thin flexible design technology solutions can real- ize the curved surface of the fine fit measurement. Can test 0-10PSI (about 70Kpa) range, sensor measurement sensitivity ± 0.1Kpa.
