System Introduction
SFD (Surface Flatness Detection System) flatness detection equipment is mainly used for quick on-site commissioning of scrapers, rollers and machines. Its built-in lithium battery, charging time: 1.5 hours, can last 4 hours power supply. Through the wireless way to realize the connection with the plate, the operator can quickly through the software to check the flatness situation. The product is small in size and portable, which is the first choice for on-site inspectors.
The system matching software is installed in the tablet, the flatness situation displayed can be saved and exported with one key. The operator can set the product standard and realize NG/OK determination with one click.
Technical specification
The SFD system consists of
| Item | Quantity |
|---|---|
| SFD01 Data Acquisition Device | 1 set |
| SF Series Thin Film Sensors | 2 sheets |
| Redmi Pad Pro Tablet | 1 set |
| Mobile Power 10000mA | 1 set |
SFD System Advantages
| Advantage | Description |
|---|---|
| Quick Installation | APP Instant Use |
| Quick Start | One-touch tablet connection |
| Intuitive Analysis | Intuitive NG/OK display |
| Ultra-long battery life | 4 hours of continuous use |
Collector SFD01 parameters
| Appearance size | Communication | Frequency | No. of sensing points |
|---|---|---|---|
| 140×66×35 mm | 2.4GHz wireless network | 100Hz | 1024 |

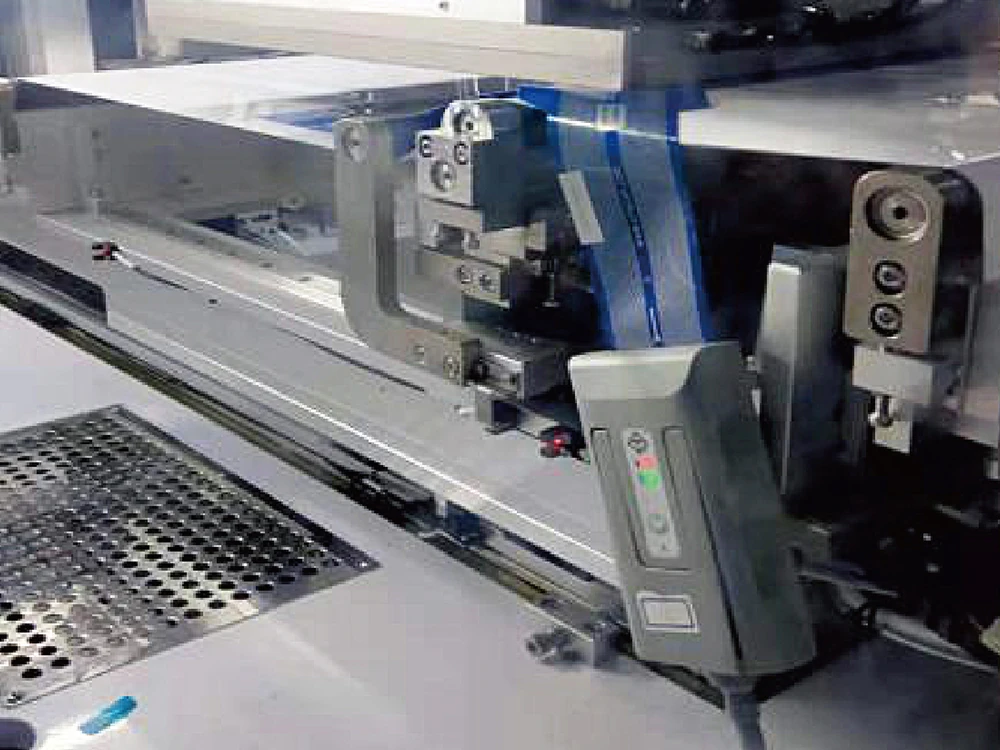

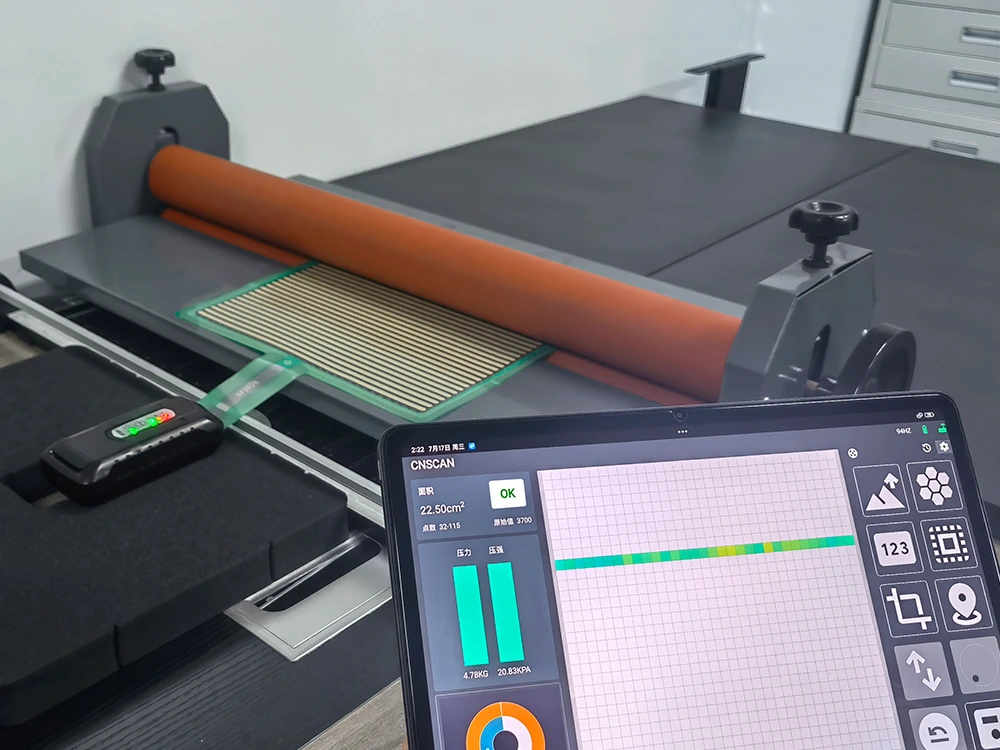

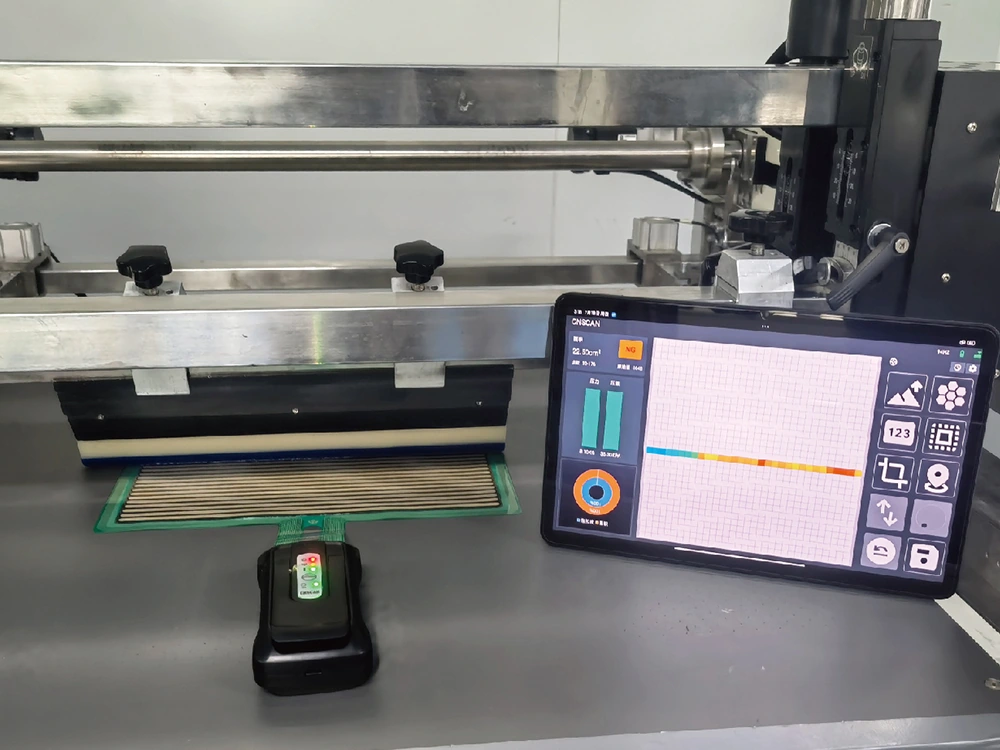

S4 Surface Flatness Detection System (SFD) Application Examples

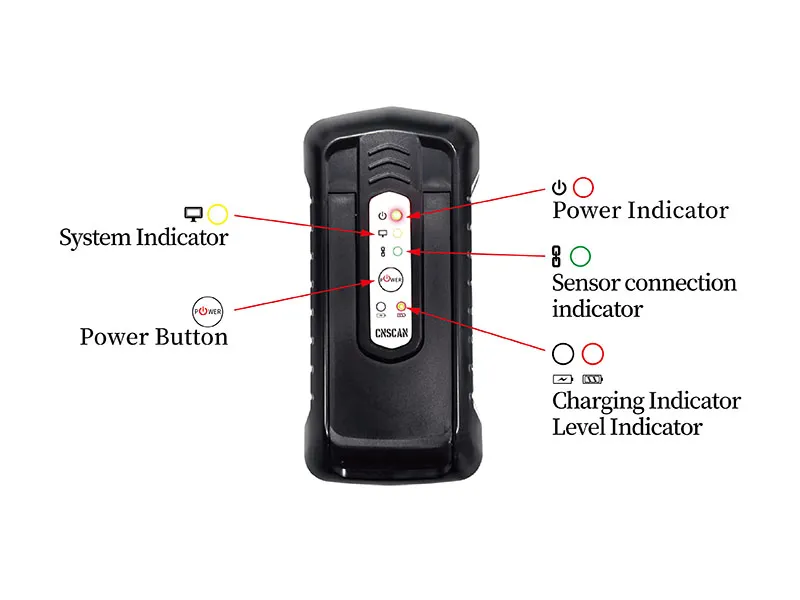

Collector
- Power indicator light
- System LEDs
- Sensor connection indicator
- Power button
- Charging indicator light

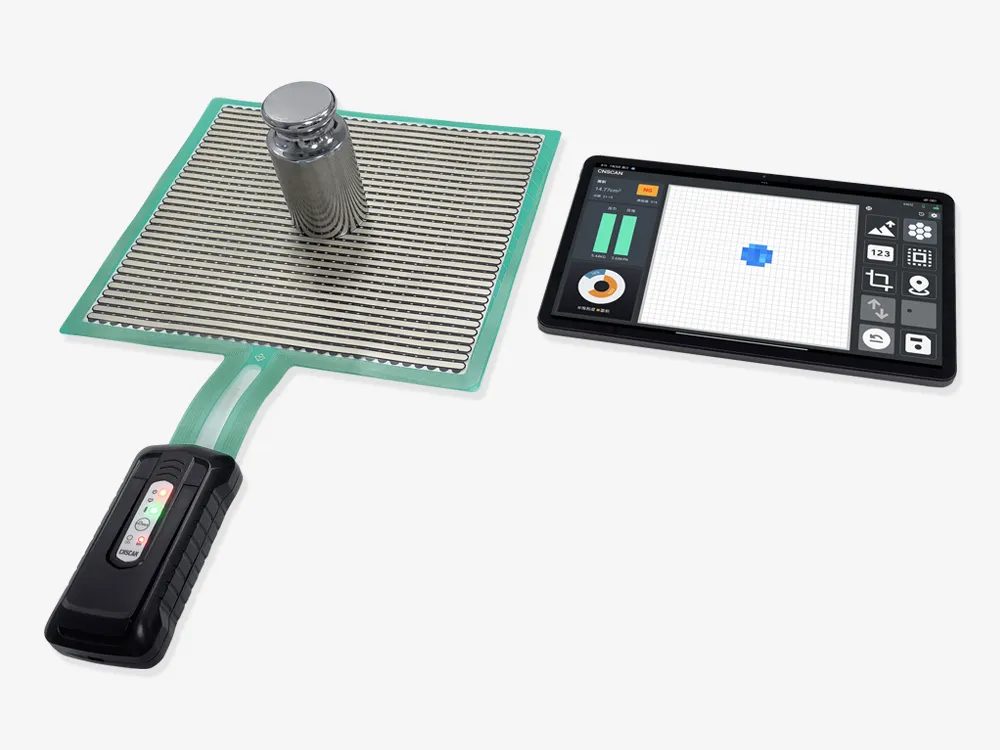

Detail Display
