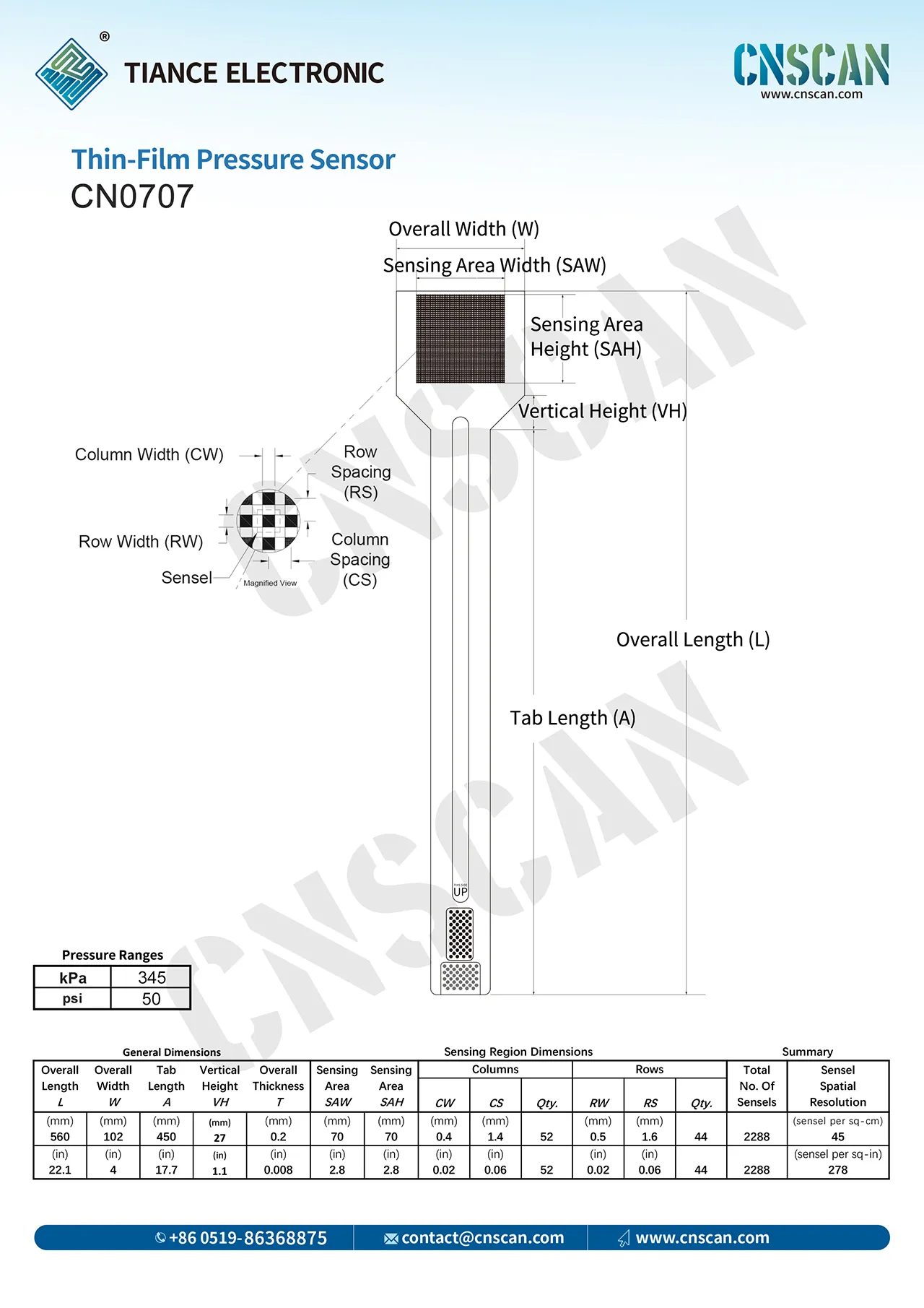

SPECIFICATION
| General Dimensions | Sensing Region Dimensions | Summary | ||||||||||||
| Overall Length
L |
Overall
Width W |
Tab
Length A |
Vertical Height
VH |
Overall
Thickness T |
Sensing Area
SAW |
Sensing Area
SAH |
Columns | Rows | Total
No. Of Sensels |
Sensel
Spatial Resolution |
||||
|
CW |
CS |
Qty. |
RW |
RS |
Qty. |
|||||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (sensel per sq-cm) | |||
| 560 | 102 | 450 | 27 | 0.2 | 70 | 70 | 0.4 | 1.4 | 52 | 0.5 | 1.6 | 44 | 2288 | 45 |
| (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (in) | (sensel per sq-in) | |||
| 22.1 | 4 | 17.7 | 1.1 | 0.008 | 2.8 | 2.8 | 0.02 | 0.06 | 52 | 0.02 | 0.06 | 44 | 2288 | 278 |
